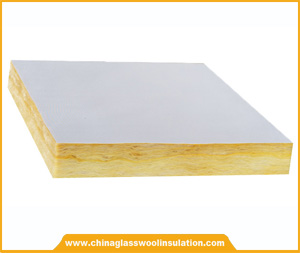

ISOKING TM Glass Wool Insulation Panels
Width: 0.6m-1.2m.
Length: 0.6-2.4m.
Thickness: 25-100mm.
Density: 24-96kg/m3
Facing: FSK, Kraft, BGT.
Overview of ISOKING TM Glass Wool Insulation Panels:
ISOKING TM Glass Wool Panels adopts high grade & high density acoustic absorption fiberglass wool as base material and the linings are efficient inflaming with fire retardant fabric or leather. Fine machined based on different types, demand and occasions. It has the advantages of fireproof, sound isolation, sound absorption, and beautiful decoration effect. It has been proved to have excellent sound absorption properties for middle and high frequency.
ISOKING TM Glass Wool Insulation Board production lines range from 5 to 700 tons/day capacity (100,000 to 1,500,000 tons/year), and are fully automated thanks to PLC and Scada systems.
All ISOKING TM lines comply with the latest international environmental regulations.
Distinctive Advantages of ISOKING TM Glass Wool Insulation Panels:
Sound absorption and noise reduction.
Easy for construction; cutting at will.
Grade A1 fireproof.
Low moisture absorption; stable physical properties.
Strong vibration resistance and high durability.

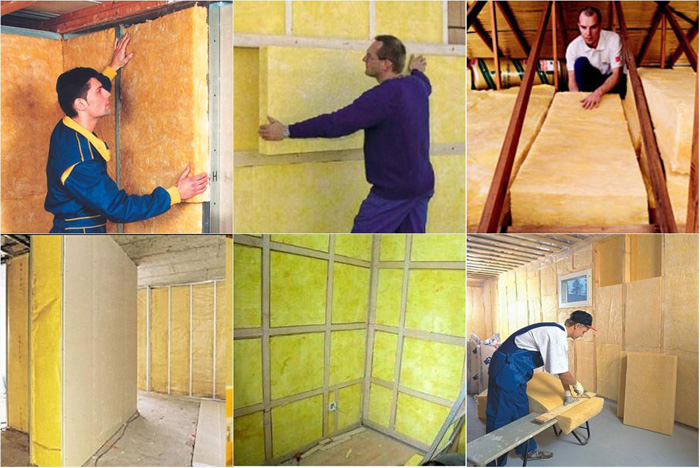

Applications of ISOKING TM Glass Wool Insulation Panels:
Heat preservation for steel structure building.
Heat insulation for wall and roof of house to save energy.
For indoor partition wall, Train compartment.
For cool-making and high buildings required to be fireproof, heat resistant, and sound insulating.
ISOKING TM Glass Wool Insulation Panels are widely used in industrial plants, warehouses, public facilities, exhibition centers, shopping centers, cold stores and a variety of indoor playgrounds, sports grounds and other buildings.
Product Specifications of ISOKING TM Glass Wool Insulation Panels:
Model | Density (Kg/m3) | Thickness (mm) | Width (mm) | Length (mm) |
IK-GWB24 | 24 | 50 | 600 | 1200 |
100 | ||||
IK-GWB32 | 32 | 30 | 600 | 1200 |
50 | ||||
100 | ||||
IK-GWB16 | 48 | 25 | 600 | 1200 |
50 | ||||
100 | ||||
IK-GWB24 | 64 | 25 | 600 | 1200 |
50 | ||||
IK-GWB32 | 80 | 25 | 600 | 1200 |
50 |
Technical Parameters of ISOKING TM Glass Wool Insulation Panels:
Item | Unit | Index | Measured value | Remarks |
Bulk density | kg/m3 | 70-96 | 10-96 | GB/T 13350-2000 |
Average diameter of fibers | m | < 8.0 | 4.0-6.0 | GB/T 13350-2000 |
Moisture resistivity | % | > 98 | > 98.5 | JISA9512-2000 |
Thermal conductivity | W/m.k | 0.049-0.042 | 0.045-0.032 | GB/T 13350-2000 |
Incombustibility |
| Incombustible | Up to standard (Grade A) | GB/T 13350-2000 |
Sound absorption coefficient |
|
| 1.03 product reverberation positioning 24kg/m3 2000HZ | GB/J47-83 |
Max. working temperature |
| 400 | 410 | GB/T 13350-2000 |
