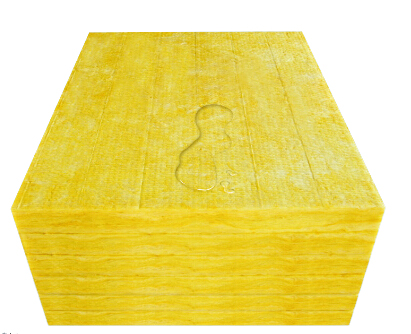

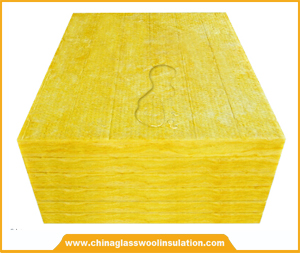

ISOKING TM Glass Wool Insulation Board
Width: 0.6m-1.2m.
Length: 0.6-2.4m.
Thickness: 25-100mm.
Density: 24-96kg/m3
Facing: FSK, Kraft, BGT.
Overview of ISOKING TM Glass Wool Insulation Board:
ISOKING TM complete Glass Wool Insulation Board is made by adopting unique centrifugal technology and adding environmental adhesives of thermosetting resins-based into molten glass fibrosis. It is a kind of elastic glass fiber product made of glass fiber with diameter of only a few microns, and we can also choose moisture-proof facing on-line compound according to customers' requirements. Because of a large number of tiny air interspaces, it has the functions of heat insulation, sound absorption, safe guarding and etc, so it is the best materials of heat insulation and sound absorption in construction.
ISOKING TM Glass Wool Insulation Board production lines range from 5 to 700 tons/day capacity (100,000 to 1,500,000 tons/year), and are fully automated thanks to PLC and Scada systems.
All FIRSTFLEX TM lines comply with the latest international environmental regulations.
Distinctive Advantages of ISOKING TM Glass Wool Insulation Board:
Sound absorption and noise reduction.
Easy for construction; cutting at will.
Grade A1 fireproof.
Low moisture absorption; stable physical properties.
Strong vibration resistance and high durability.
Applications of ISOKING TM Glass Wool Insulation Board:
ISOKING TM Glass Wool Insulation is light and easy to install at office building, modern entertainment centre, roof, HVAC system and also other residential, industrial buildings such as:
Walling and partitioning; Faced and external walls; Suspended ceiling; Steel structures; Prefabricated houses; HVAC Duct works.
Product Specifications of ISOKING TM Glass Wool Insulation Board:
Model | Density (Kg/m3) | Thickness (mm) | Width (mm) | Length (mm) |
IK-GWB24 | 24 | 50 | 600 | 1200 |
100 | ||||
IK-GWB32 | 32 | 30 | 600 | 1200 |
50 | ||||
100 | ||||
IK-GWB16 | 48 | 25 | 600 | 1200 |
50 | ||||
100 | ||||
IK-GWB24 | 64 | 25 | 600 | 1200 |
50 | ||||
IK-GWB32 | 80 | 25 | 600 | 1200 |
50 |
Technical Parameters of ISOKING TM Glass Wool Insulation Board:
Item | Unit | Index | Measured value | Remarks |
Bulk density | kg/m3 | 70-96 | 10-96 | GB/T 13350-2000 |
Average diameter of fibers | m | < 8.0 | 4.0-6.0 | GB/T 13350-2000 |
Moisture resistivity | % | > 98 | > 98.5 | JISA9512-2000 |
Thermal conductivity | W/m.k | 0.049-0.042 | 0.045-0.032 | GB/T 13350-2000 |
Incombustibility |
| Incombustible | Up to standard (Grade A) | GB/T 13350-2000 |
Sound absorption coefficient |
|
| 1.03 product reverberation positioning 24kg/m3 2000HZ | GB/J47-83 |
Max. working temperature |
| 400 | 410 | GB/T 13350-2000 |
Property | Performance | Standard |
Maximum Service Temperature | 450˚C | ASTM C411 |
Combustiblity | Non-combustible | ASTM E 84 |
Rigidity | Semi-Rigid | ASTM C1101 |
Shot content | Free of shot | ASTM C612 |
Fungi Growth | Does not encourage fungi growth | ASTM C665 |
NRC Value | 0.75-1.24 | ASTM C423 |
Thermal conductibility | < 0.035 | ASTM C 518 |
Moisture absorption | Less than 0.2% by volume | ASTM C533 |
