ISOKING TM Glass Wool Insulation Batts
Width: 430mm, 580mm.
Length: 1160mm.
Thickness: 60-200mm
Overview of ISOKING TM Glass Wool Insulation Batts:
ISOKING TM glass wool batts is made from quartz sand, dolomite, feldspar, limestone and so on inorganic raw material. It is produced through heating these material at 1200˚C - 1400˚C and transforming it into fibers. It can be manufactured in different size and with different technical properties, with different facing materials according to the intended use and the place of use. It is used for thermal insulation, sound insulation, acoustic comfort as well as fire safety.
The thermal conductivity is 0,032 ≤ λ ≤ 0,043 W/mK.
Even if it is subjected to heat and humidity it stays dimensionally stable.
It is rot proof, resistant to aging, not hygroscopic. They are resistant against insects and microorganisms.
Unfaced glass wool products are classified as “A1” group non combustible material.
All ISOKING TM lines comply with the latest international environmental regulations.
Applications of ISOKING TM Glass Wool Insulation Batts:

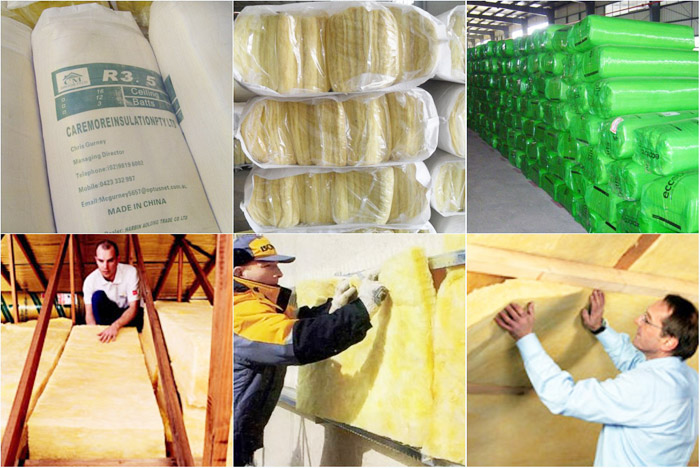

ISOKING TM Glass Wool Batts was used as thermal and sound insulation for storage tank, industrial thick pipe, walls, also ceiling of building and construction.
Product Specifications of ISOKING TM Glass Wool Insulation Batts:
R-Value | Thickness (mm) | Size (mm) | Pieces per bag | Density (Kg/m3) |
R1.5 | 65 | 580*1160 | 26 | 12 |
R1.5 | 65 | 430*1160 | 26 | 12 |
R2.0 | 85 | 580*1160 | 24 | 12 |
R2.0 | 85 | 430*1160 | 24 | 12 |
R2.5 | 90 | 580*1160 | 14 | 20 |
R2.5 | 90 | 430*1160 | 14 | 20 |
R2.5 | 110 | 580*1160 | 20 | 12 |
R2.5 | 110 | 430*1160 | 20 | 12 |
R3.0 | 130 | 580*1160 | 16 | 12 |
R3.0 | 130 | 430*1160 | 16 | 12 |
R3.5 | 150 | 580*1160 | 14 | 12 |
R3.5 | 150 | 430*1160 | 14 | 12 |
R4.0 | 175 | 580*1160 | 12 | 12 |
R4.0 | 175 | 430*1160 | 12 | 12 |
R5.0 | 210 | 580*1160 | 10 | 13 |
R5.0 | 210 | 430*1160 | 10 | 13 |
R6.0 | 230 | 580*1160 | 8 | 18 |
R6.0 | 230 | 430*1160 | 8 | 18 |
Technical Parameters of ISOKING TM Glass Wool Insulation Batts:
Property | Performance | Standard |
Maximum Service Temperature | 450˚C | ASTM C411 |
Outer foil temperature limited to 100˚C |
| |
Combustibility | Non-combustible | ASTM E84 |
Shot content | Free of shot | ASTM C612 |
NRC Value | 0.75-1.24 | ASTM C423 |
Thermal conductibility | < 0.044 | ASTM C 518 |
Moisture absorption | Less than 0.2% by volume | ASTM C533 |
Corrosivity | Does not accelerate | ASTM C665 |
Mold resistance | No growth | ASTM C665 |
Surface burning characteristics Fire Test | Flame spread < 25 | ASTM E84 BS 476 Part 6,7 |
