ISOKING TM Rockwool Sandwich Panel
Home » Products » Sandwich Panels » ISOKING TM Rockwool Sandwich Panel

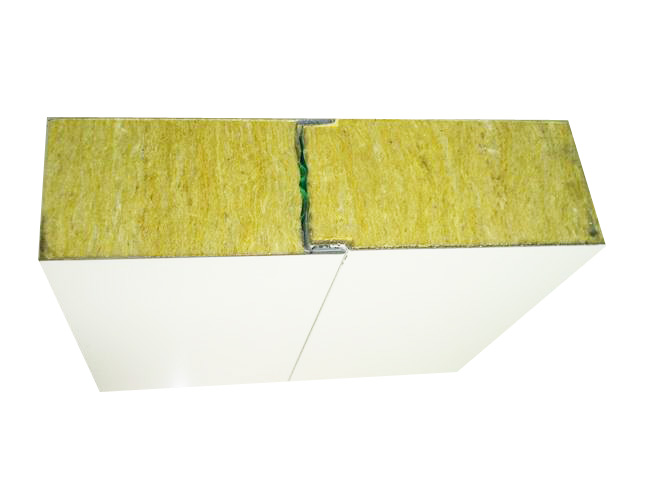

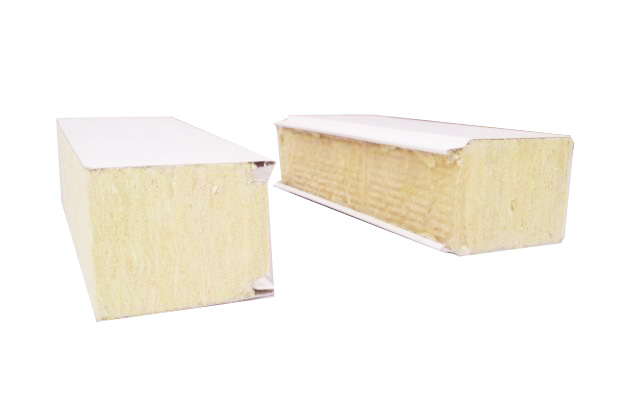

ISOKING TM Rockwool Sandwich Panel

Fireproofing and good sound absorption.

Low thermal conductivity.

Insulation performance is good.

ISO14001: 2004 and CE certificate.

Description of ISOKING TM Rockwool Sandwich Panel:

ISOKING Rock wool sandwich panel uses vertical-hair-shaped rock wool as inner side, colored steel sheets as outer side, after formed outer side, after formed by automatically machine, then adhered with super glue. It is good in fireproofing because colored steel sheet and rock wool doesn’t flame. It’s suitable to be used as roof panel and wall panel. Rockwool sandwich panel has a good future in noise reduction, specially suitable for the place where is high requirement in the sound absorption.

ISOKING TM Rockwool Sandwich Panel Details:

Rockwool Sandwich Panels is Using Color Steel, Galvanized Sheet or Stainless Steel as the upper

and lower surface and Rockwool as the core material, composited by special glue of building use.

Product Name

ISOKING Rockwool (Mineral wool) Sandwich Panels

Steel Thickness

0.25-0.6mm

Panel thickness

50-250mm

50mm/60mm/75mm/80mm/100mm/120mm/150mm/180mm/200mm/250mm

Effective width

950mm-1000mm for roof

950mm 960mm 970mm 980mm

600-1200mm for wall

950mm 1000mm 1150mm 1200mm

Length

According to your requests, less than 11.8m

Rockwool Density

80-180 kg/m3

120 kg/m3 for standard

Materials

Inner is Rockwool, two sides is color steel sheet

Color

White, Silver, Blue, Grey, Red or refer to RAL

Coating

PE /PVDF/SMP/HDP

Lifetime

15-20 years

Character

Heat insulation, Fireproof & Waterproof, Sound absorption,

Package

Packed by plastic bags, Standard exporting package.

Application

Various roofs and walls referring to the large size factory, buildings, storages,

exhibition halls, gymnasiums,

prefabricated house, etc.

FIRSTFLEX TM Rockwool Sandwich Panel
